- Product Introduction
Products Description

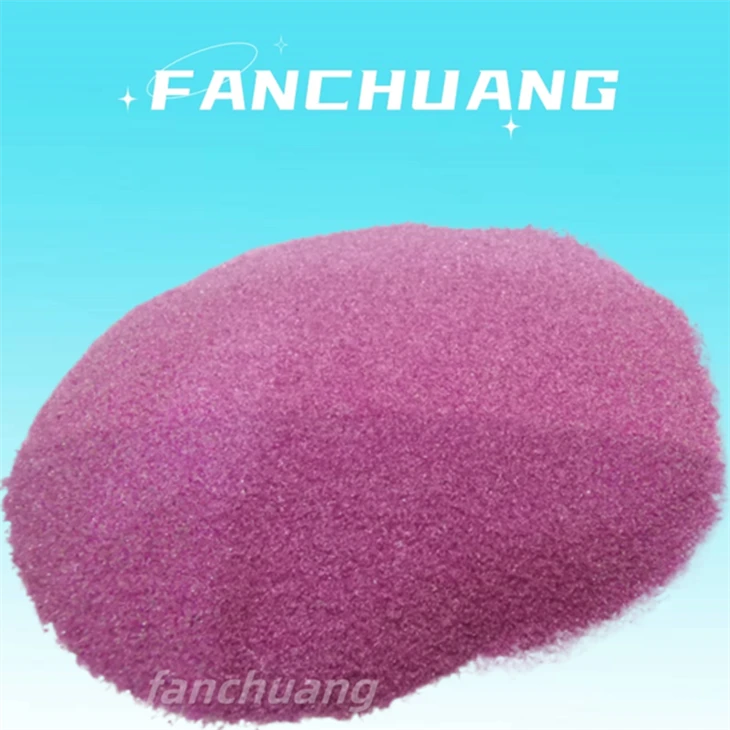

Chromium corundum is made of alumina powder and moderate chromium oxide ,which is melted at high temperature.
Chromium fused alumina is pink,its hardness is similar to white alumina,and toughness is higher than white alumina.Abrasives made of chromium fused alumina have good durability and high smoothness of grinding.
It is suitable for precision grinding such as measuring instruments,machine tool shafts,instrument parts,screwwork parts and sample grinding.It can also be used as grinding and polishing materials,precision casting sand,spraying materials,chemical catalyst carriers,special ceramics,high-grade refractories,etc.
Carefully selected material
Using advanced screening and grading technology,our experienced workers select high-quality raw material carefully,thus ensure each batch of product is in good quality.
Strict production process
1Raw material→2pyrolytic smelting→3cooling out of furnace→4mass crashing→5ball grinding→6Barmack crushing and sieving→7finished product of granular sand →8sifting residue powder→9chemical treatment→10water countercurrent classification→11sediment pool→12drying fine powder→13inspection of finished product→14finished product storage→15reinspection→16shipment
Excellent quality
Good crystallinity,pure color,high packing density and toughness;
Uniform particle size,low magnetic content,fast processing speed,and high quality;
High purity,high hardness,good cleanliness,good self-sharpness and corrosion resistance.
A complete range of specifications

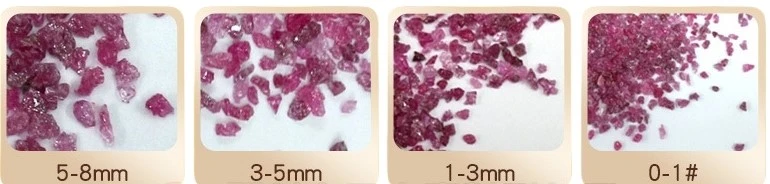

secion sand 0-1mm/1-3mm/3-5mm/5-8mm

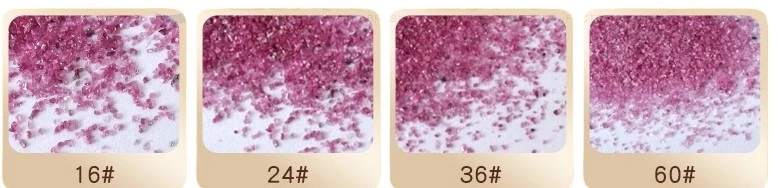

granular sand:16#/24#/30#/36#/46#/60#/80#

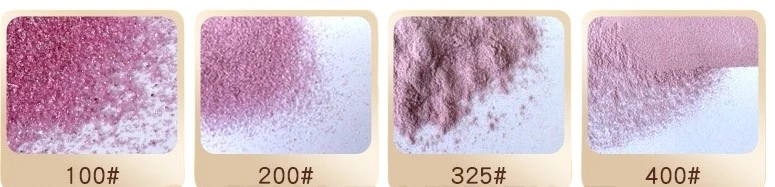

fine powder100#/200#/325#/400#
Other sizes are also available on request.
Wide range in application
The chromium fused alumina produced by our company can also be used in the production of coated abrasives industry,mainly for wood grinding,also can be used for non-ferrous metal grinding,such as copper,brass,etc.Compared with white corundum,chromium fused alumina is more unbreakable,so it forms a smooth surface.
Products Parameter
Physical properties
| basic mineral | α-Al2O3 |
| color | pink |
| crystal size | 600-2000μm |
| specific gravity | ≥3.9g/cm3 |
| packing density | 1.40-1.91g/cm3 |
| micro hardness | 2200-2300g/mm2 |
Chemical content
| Grits | low chromium content | medium chromium content | high chromium content | ||||||
| Al2O3 | Cr2O3 | Na2O | Al2O3 | Cr2O3 | Na2O | Al2O3 | Cr2O3 | Na2O | |
| F12-F80 | ≥98.50 | 0.20-0.45 | ≤0.50 | ≥98.20 | 0.45-1.00 | ≤0.55 | ≥97.40 | 1.00-2.00 | ≤0.55 |
| F90-F150 | ≥98.50 | 0.20-0.45 | ≤0.55 | ≥98.20 | 0.45-1.00 | ≤0.60 | ≥97.00 | 1.00-2.00 | ≤0.60 |
| F180-F220 | ≥98.00 | 0.20-0.45 | ≤0.60 | ≥97.80 | 0.45-1.00 | ≤0.70 | ≥96.50 | 1.00-2.00 | ≤0.70 |

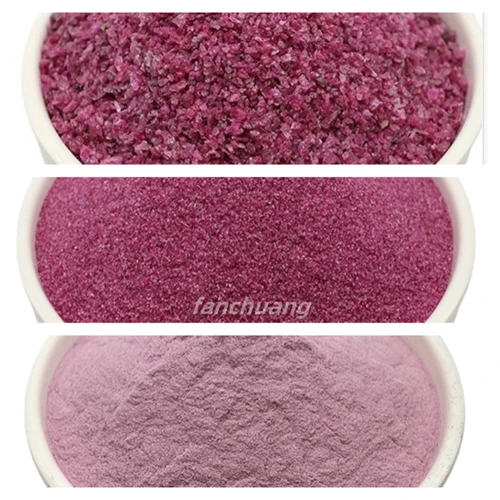

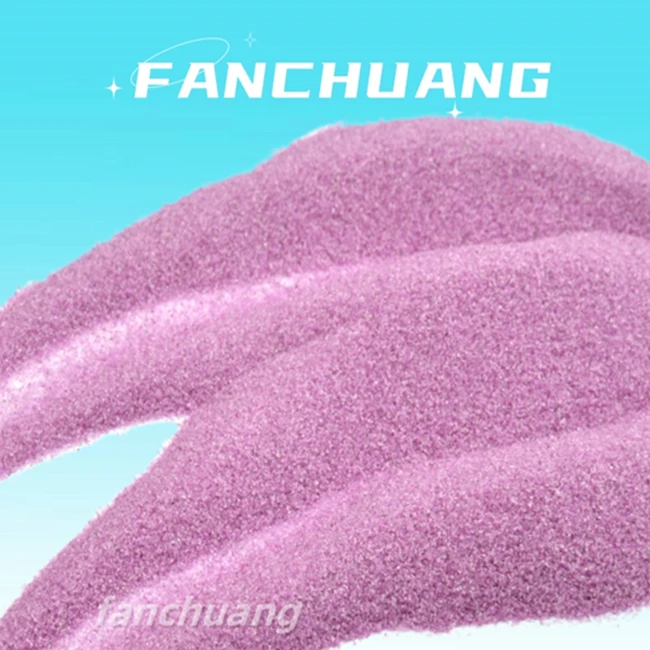

Detailed picture
Application range

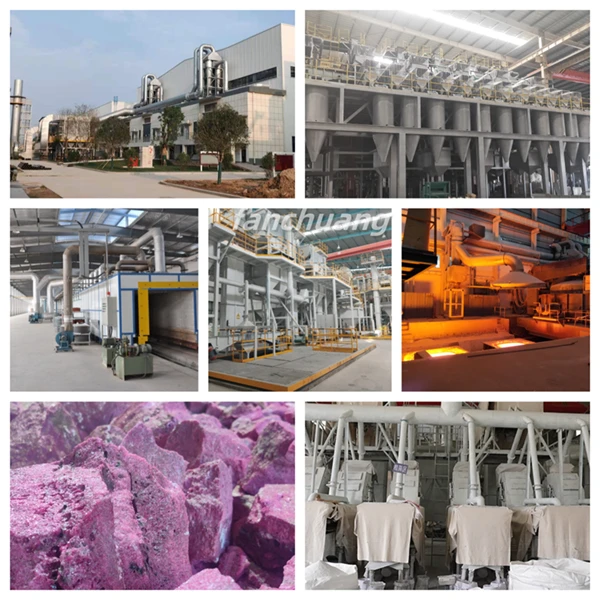

Factory picture

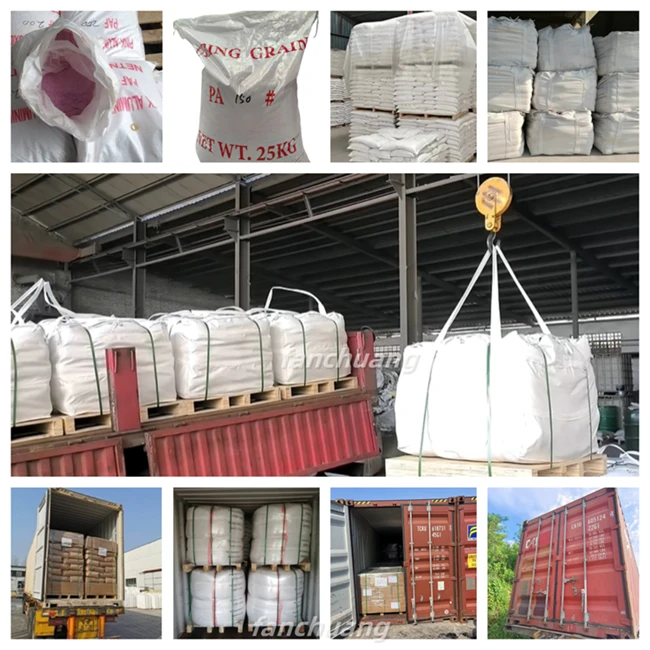

Packing & transportation
FAQ
Q:Who are you?
A: ZHENGZHOU FANCHUANG SCIENCE AND TECHNOLOGY CO.,LTD is a manufacturer and trader specialized in the research, development and production of abrasive products. We are located in Zhengzhou city,Henan province,China,with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Q: Can you accept customization?
A: Yes. If you have special requirements on products or packages, we can do customization
for you.
Q: Are samples available for quality test?
A: Yes,free samples can be prepared for quality test,but usually customers bear the freight charges.
Q:How long can I get a sample or some samples?
A:Normally 1-3 working days.
Q: How can you guarantee quality?
A: We have a strict inpection process to ensure product quality.
Q: What are your terms of payment?
A: T/T,L/C,paypal,western union and other payment methods can be negotiated.
Q: Where is your nearest loading port?
A: Qingdao port.Other ports can also be designated according to your requirement.
Contact us
If you have any other specific needs or questions about abrasive product, please feel free to contact us.
 |
