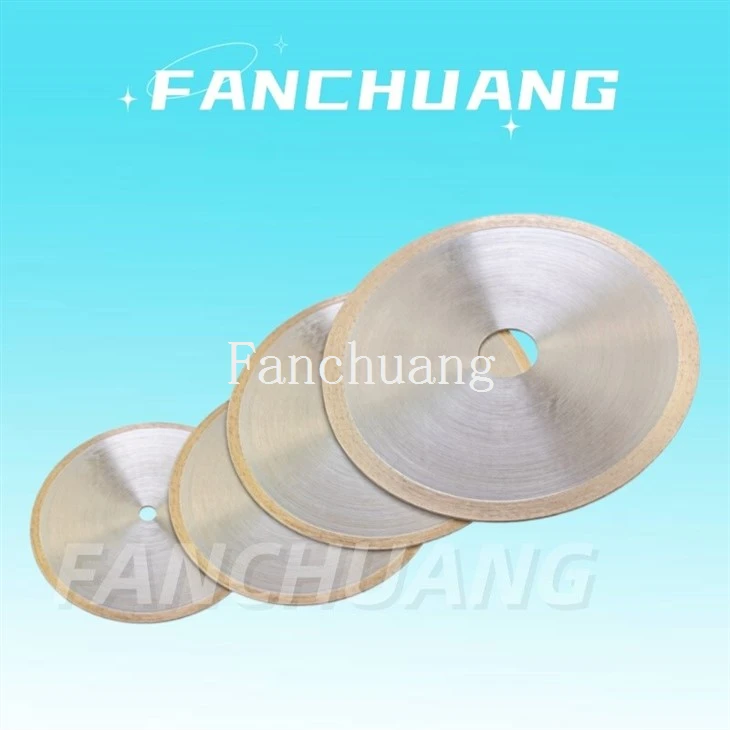

Sintered Diamond Saw Blades
made by sintering bronze, featuring high precision and long service life.
High-quality diamond abrasive with high precision can reach 2 microns
high-strength 65MN steel base is quenched and tempered, and then annealed and flattened.
Customization Options
- Product Introduction
Products Features
Our sintered diamond saw blades are engineered to deliver high-performance, durable cutting in demanding applications. Through a specialized sintering process, diamond particles are bonded with a premium metal matrix, providing excellent wear resistance, edge retention, and cutting consistency. Suitable for a range of materials-from natural stone and ceramics to advanced composites-our blades are designed for operators who value reliability, speed, and clean cuts.
All cutting discs are made of selected high-quality abrasives and processed through a special technique to ensure uniform particle adhesion on the surface of the discs, strong bonding, and resistance to cracking. This provides better protection for the sample during the cutting process, enhances the surface smoothness of the sample, and prolongs the service life of the metallographic cutting discs.
Strong Diamond Bonding – The sintering process ensures diamond grit is firmly held in a metal bond, reducing particle loss and extending blade life.
Material Versatility – Ideal for cutting granite, marble, tiles, glass, concrete, semiconductors, and other hard or brittle substances.
Segment & Rim Options – Choose from segmented designs for faster chip removal and cooling, or continuous rims for smoother finishes.
Wide Range of Sizes – Available in diameters from 75mm to 350mm, with thickness options from 0.3mm to 2.0mm. Standard and custom arbor sizes are also supported.
Products Parameter
| Diameter | Thickness |
| 100*12.7MM | 0.5MM |
| 100*20MM | 0.4/0.5/1.0MM |
| 127*20MM | 0.4/0.5MM |
| 150*12.7MM | 0.5/0.6/0.7MM |
| 150*25.4MM | 0.6/0.7MM |
| 150*32MM | 0.6/1.0/1.5MM |
| 180*12.7MM | 1MM |
| 180*20MM | 1.5MM |
| 200*25.4MM | 1.0MM |
| 200*32MM | 1/1.2/2MM |
| 250*32MM | 1.2MM |
| 254*32MM | 1.2MM |
| 300*32MM | 1.5MM |
Application Scope
Safety Guidelines
1.Handle saw blades with care to prevent impacts that may lead to blade fracture, breakage, detachment, or deformation.
2.Ensure the flat surface of the blade is aligned parallel to the intended cutting path. Verify that the blade rotation direction matches that of the machine spindle. Keep hands and all body parts clear of the blade during startup to avoid injury.
3.Begin cutting only after the saw blade has reached its full operational speed. Cutting at insufficient speed can cause alloy damage and pose safety risks.
4.Should any irregularity occur during cutting, stop the machine immediately and perform a thorough inspection before resuming work.
5.Discontinue use at once if any alloy segments detach from the blade. Arrange for professional repair before further operation.
6.Operators must utilize appropriate personal protective equipment (PPE) throughout all stages of operation to ensure safety compliance
Quality Assurance
We maintain strict quality control at each production stage:
Raw materials are inspected for consistency and grade.
Sintering parameters are monitored to ensure uniform bonding and density.
Finished blades undergo visual, dimensional, and sample cutting tests before shipment.
FAQ
Q: Who are we?
Zhengzhou Fanchuang Science and Technology Co., Ltd. is a leading manufacturer based in Zhengzhou, the industrial heart of China's abrasives and grinding tools industry. With over ten years of expertise, we have built a flexible and integrated production system tailored to meet the varied demands of grinding applications across global markets. Our products are developed in line with international quality benchmarks and are relied upon by clients throughout Latin America, the Middle East, and beyond.
Q: Do you support product customization?
Yes, we specialize in customized solutions. Whether it involves dimensions, grit grade, bonding type, shape, or specific performance needs, we collaborate closely with you to develop products that match your exact requirements. Share your specifications, and we will manage the process from design to delivery.
Q: Can I request samples before placing an order?
We encourage customers to evaluate our quality firsthand. Complimentary samples are available for assessment, with freight costs covered by the client. The sample charge is fully deductible from your first bulk order invoice.
Q: How soon can samples be ready?
Samples are usually prepared within 1–3 business days. To expedite shipping, please provide your express account details. If you do not have one, we can arrange logistics and share a transparent cost summary for your approval prior to dispatch.
Q: How do you ensure product quality?
Our dedicated quality control team oversees every stage of production-from raw material sourcing to final inspection. Supported by experienced technical staff and a structured management system, we ensure every product meets consistent standards for durability, performance, and reliability.
Q: What payment terms do you accept?
We provide flexible payment options including T/T, L/C, PayPal, and Western Union. We are happy to discuss terms that best fit your business operations.
Q: Which port do you ship from?
Our primary export port is Qingdao. We can also arrange shipments from Ningbo, Shanghai, Shenzhen, or other major ports according to your logistical needs. Let us know your preference, and we will coordinate the most efficient and cost-effective shipping route to your destination.
