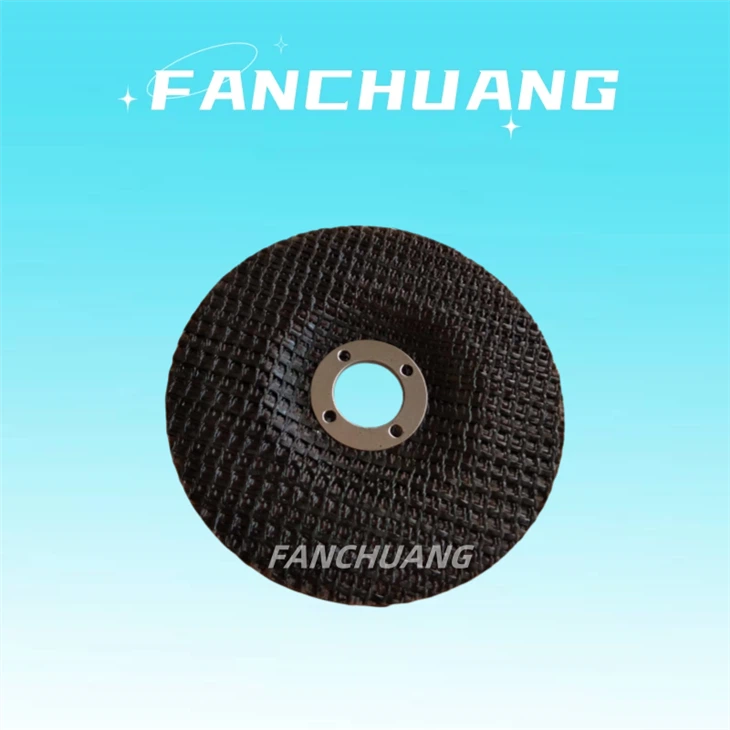

Fiberglass Backing Plate For Making Flap Discs
No glue penetration
High-strength and light-weight
Full range size from 75mm-220mm, other specialize size can be customized.
Excellent bonding property and heat resistance
Strict detection, inspection and testing
- Product Introduction
Products Description
Fanchuang fiberglass mesh backing plate consists of fiberglass fabric,glue and X-lock metal rings.Its surface can be fiberglass cloth,back paper,non-woven cloth or other OEM labels according to your needs.It is widely used in the back cover of abrasive and grinding wheels.
excellent quality fiberglass mesh
Not only the material of fiberglass mesh is excellent,but also its cutting technology is exquisite.We have automatic production equipment to ensure that the fiberglass mesh is cut into round slices with appropriate layers and cutting depth.
galvanized metal ring
All the metal rings for fiberglass backing plates are from rust-proof galvanized steel sheet.The steel sheets are pressed into rings intelligently with automatic pressing machine.
Different back material
The back can be black paper,fiberglass cloth ,nonwoven cloth and OEM label as per your requirements.
Strict quality inspection
Each abrasive wheel is put through strict quality controls before delivery because we are scrupulous about every detail.Excellent talents of management,professional technical team and strict quality testing procedures can ensure each batch of our products in its best presentation.
Specification parameter
| diameter of backing plate | hole diameter | dimension of flap disc | dimension of flap disc | Type | Layers |
| 75mm | 16.3mm | 100*16mm | 4*5/8inch | T27/T29 | 6-9 |
| 90mm | 16.3mm | 100*16mm | 4*5/8inch | T27/T29 | 6-12 |
| 95mm | 16.3mm | 100*16mm | 4*5/8inch | T27/T29 | 6-12 |
| 107mm | 22.23mm | 115*22.4mm | 4 1/2*7/8inch | T27/T29 | 6-12 |
| 117mm | 22.23mm | 125*22mm | 5*7/8inch | T27/T29 | 6-12 |
| 140mm | 22.23mm | 150*22mm | 6*7/8inch | T27/T29 | 8-12 |
| 170mm | 22.23mm | 180*22mm | 7*7/8inch | T27/T29 | 8-12 |
| 220mm | 22.23mm | 280*22mm | 9*7/8inch | T27/T29 | 10-15 |
Detailed picture
Production workshop
Packing&transportation
FAQ
Q:Who are you?
A: ZHENGZHOU FANCHUANG SCIENCE AND TECHNOLOGY CO.,LTD is a manufacturer and trader specialized in the research, development and production of abrasive products. We are located in Zhengzhou city,Henan province,China,with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Q: Can you accept customization?
A: Yes. If you have special requirements on products or packages, we can do customization
for you.
Q: Are samples available for quality test?
A: Yes,free samples can be prepared for quality test,but usually customers bear the freight charges.
Q:How long can I get a sample or some samples?
A:Normally 1-3 working days.
Q: How can you guarantee quality?
A: We have excellent talents of management,professional technical team,strict quality testing procedures.We are scrupulous about every detail,thus our professional QC team will carry out strict quality inspection on every production process.
Q: What are your terms of payment?
A: T/T,L/C,paypal,western union and other payment methods can be negotiated.
Q: Where is your nearest loading port?
A: Qingdao port.Other ports can also be designated according to your requirement.
