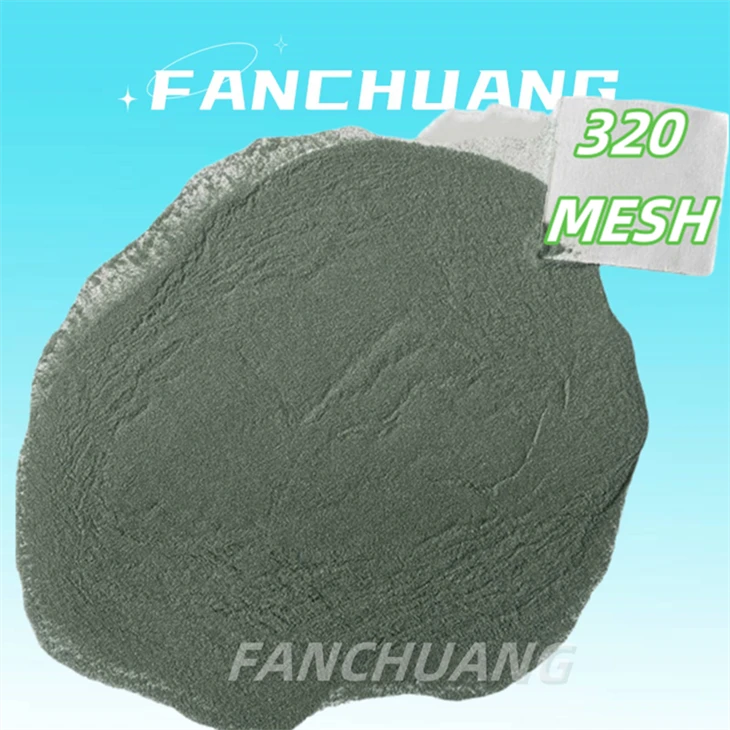

Green Silicon Carbide 320 Mesh

Green silicon carbide production method is basically the same as black silicon carbide,but the requirements for raw materials are different.Green silicon carbide is made from petroleum coke and quartz sand as the main raw materials,adding salt as an additive,in the furnace by high temperature smelting.It is green crystalline,brittle and sharp,and has some thermal and electrical conductivity.Its hardness is between corundum and diamound,and its mechanical strength is higher than corundum.

Green silicon carbide manufacturing method is the same as black silicon carbide,but the raw material purity requirements are higher.It is alo formed at a high temperature of about 2200°C in the resistance furnace.It is green,translucent,and hexagonal shape.Its Sic content is higher than black,the physical properties are similar to black silicon carbide,but the performance is slightly more brittle,but also has better thermal conductivity and semiconductor characteristics.

The green silicon carbide powder is made by crushing the big crystal green silicon carbide,reshaping the grain by vertical ball mill,pickling water, hydraulic grading,and drying after natural sedimentation.Its quality is stable,crystallization is good,and surface cleanliness is high.There are no large particles,the content of fine particles is small,and the grain distribution is concentrated.So it is suitable for various grinding processing.The surface of the processed workpiece is uniform and there are no scratches.

Green silicon carbide is widely used in various industries ,such as all kinds of precision high-end grinding stone,grinding wheel manufacturing,all kinds of semiconductors,silicon wafers,quartz,sapphire and a variety of electronic optical high-precision products surface grinding and polishing treatment,but also as ceramic additive materials and advanced refractory materials.

Green silicon carbide classification

Greem solicon carbide is divided into P sand,F sand and W powder,which refers to product models produced by different production processes in accordance with different uses in the abrasive industry.

P sand is crusher production,sharp and has better self-sharpness.P sand mainly refers to the abrasive used to the production of coated abrasives, such as abrasive melt,emery cloth,sand paper and so on.

F sand is mostly produced by ball mills or Barmack in China,with high packing density and high strength.F sand mainly refers to the abrasive used for the production of consolidated abrasives, such as ceramic grinding wheel,grinding block,resin grinding wheel and so on.

Green silicon carbide W powder is a product of deep processing of green silicon carbide raw block by ultrafine grinding.The main equipment is Barmack crushing,Raymond mill or ball mill.The different mesh number is sorted out by ultrsonic screening system.Green silicon carbide W powder is mainly used for coatings,seals and so on.



Brand	Fanchuang
Product description	green silicon carbide
Product grade	first grade
Product apperance	powder or granular
Typical physical index
basic mineral	a-SiC
crystal system	hexagonal crystal
Knoop hardness	2670-2815kg/mm2
Moh's hardness	≥9.4
Specific gravity	3.2kg/cm2
Melting point	2250℃
Typical chemical index
SiC	≥99.05%
SiO2	0.2
F.Si	0.03
F.Fe	0.04
C	0.1

Section sand:0-1mm,1-3mm,3-5mm,5-8mm

Grain-size sand:16#,20#,24#,30#,36#,46#,60#,80#,100#,120#,150#,180#,200#,220#,325#.

Micro powder:400#,600#,800#,1000#,1200#,1500#,2000#,2500#,3000#,4000#,6000#,8000#,10000#.





1photoelectric industry,semiconductor,monocrystalline silicon,multi-product silicon wafers,high-hardness silicon cutting,quartz cutting, wire cutting, photovoltaic wire cutting and other grinding.

2optical glass,quartz glass,stone polishing wheel,marble,gems,polishing disc

3 cutting tool grinding and polishing,high hardness steel cutting tool grinding,single and double surface grinding machine

4functional ceramics,functional ceramic stone,honeycomb ceramic building ceramics

5bearing mechining and bearing ultrafine machining grinding

6diamond tools,water grinding pieces,dry grinding pieces production accessories

7processing ceramic heat sink,ceramic filter,ceramic film,foam ceramic

8cemented carbide sandblasting,metal polishing,tombstone carving,etc

9oil stone,grinding stone,knife grinder,brush roller and other raw materials for production

10Teflon paint,floor paint,anticorrosive paint,environmental protection paint,polytetrafluoroethylene paint,etc.

11production of nano aerogel new materials,incubators,etc

12pipe coating and aero engine coating

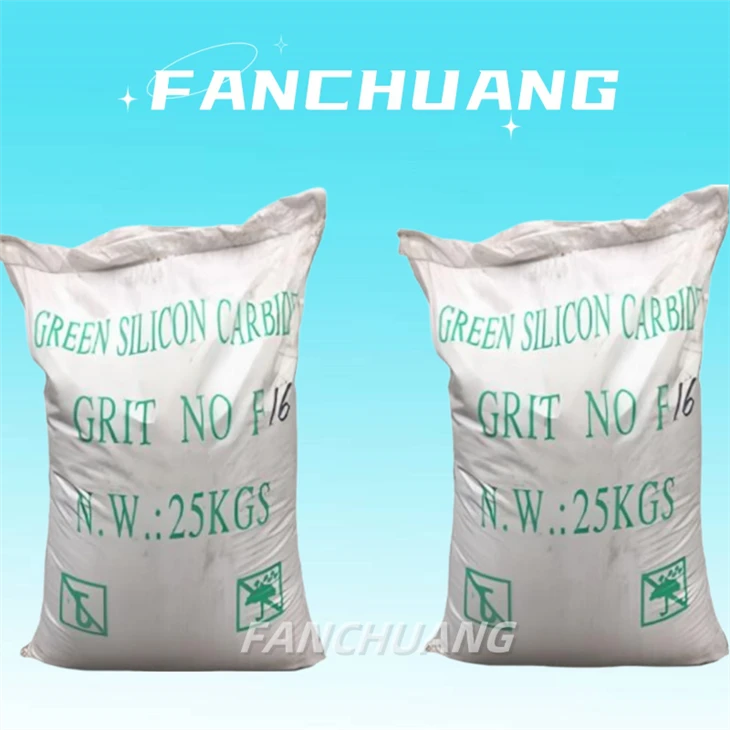

25kg woven bag with inner membrane packing

25kg woven bag with inner membrane,plus ton bag packaging

25kg woven bag with inner membrane,with tray

according to customer require,ents for products
