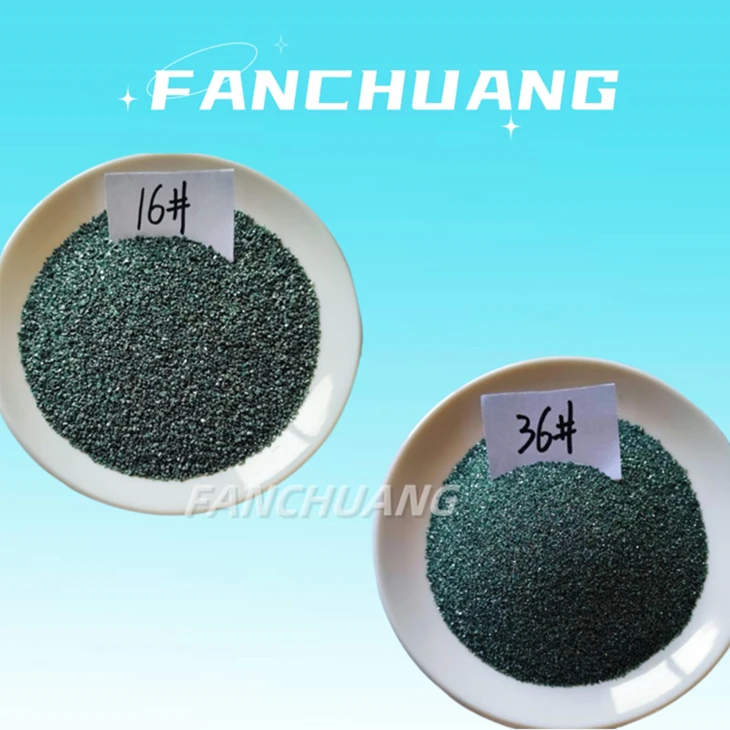

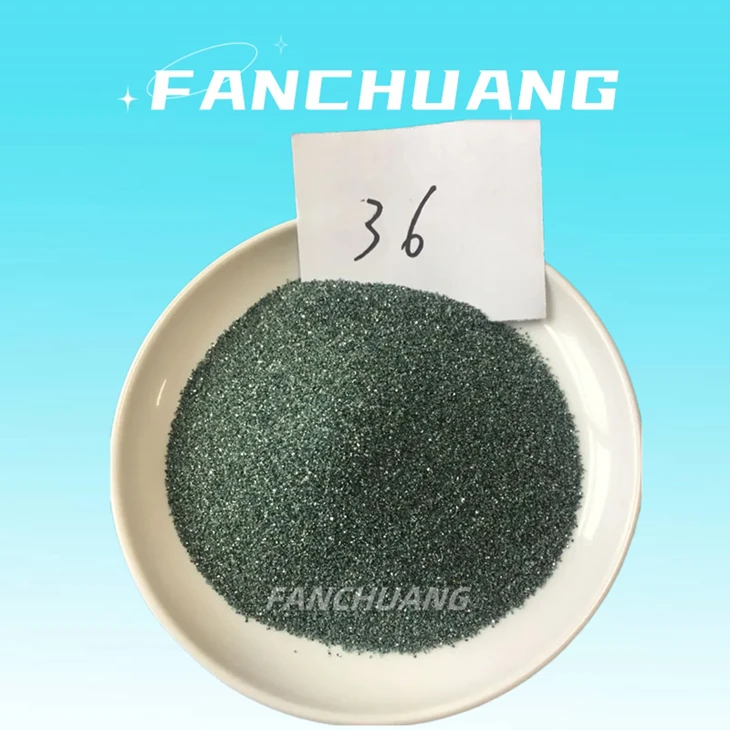

Green Silicon Carbide16 Mesh 36Mesh

Production Method
Green silicon carbide shares a similar manufacturing process with black silicon carbide, but it demands higher-purity raw materials. It is synthesized in a resistance furnace at approximately 2200°C using petroleum coke, quartz sand, and salt additives. The result is a green, hexagonal crystalline structure with exceptional hardness-positioned between corundum and diamond-and superior mechanical strength.

Physical Properties
The material exhibits high brittleness, sharp edges, and notable thermal/electrical conductivity. Its SiC content exceeds that of black silicon carbide, offering enhanced semiconductor characteristics. The translucent green crystals are ideal for precision applications due to their consistent quality and clean surface finish.

Powder Processing
Green silicon carbide powder is produced by crushing large crystals, reshaping grains via vertical ball milling, and undergoing pickling, hydraulic grading, and drying. The process ensures uniform particle distribution, minimal fine particles, and zero oversized grains, making it suitable for high-accuracy grinding without workpiece scratches.

Industrial Applications
This abrasive is widely used in:

Precision grinding tools (wheels, stones)

Semiconductor and optical component processing (silicon wafers, quartz, sapphire)

Advanced ceramics and refractories

Surface polishing for high-end electronics

Classification by Type
Green silicon carbide is categorized into three models based on production methods and applications:

P Sand: Crusher-produced, sharp grains for coated abrasives (sandpaper, emery cloth).

F Sand: Ball-milled for high density/strength, used in bonded abrasives (ceramic/resin grinding wheels).

W Powder: Ultra-fine processed via Barmack/Raymond mills, applied in coatings and seals.

Quality Assurance
Strict controls ensure high crystallization purity, stable chemical composition, and optimal particle concentration for consistent performance.

Advantages Over Black SiC

Higher purity and thermal conductivity

Superior sharpness for fine finishing

Better suitability for semiconductor and precision optics



Brand	Fanchuang
Product description	green silicon carbide
Product grade	first grade
Product apperance	powder or granular
Typical physical index
basic mineral	a-SiC
crystal system	hexagonal crystal
Knoop hardness	2670-2815kg/mm2
Moh's hardness	≥9.4
Specific gravity	3.2kg/cm2
Melting point	2250℃
Typical chemical index
SiC	≥99.05%
SiO2	0.2
F.Si	0.03
F.Fe	0.04
C	0.1

Section sand:0-1mm,1-3mm,3-5mm,5-8mm

Grain-size sand:16#,20#,24#,30#,36#,46#,60#,80#,100#,120#,150#,180#,200#,220#,325#.

Micro powder:400#,600#,800#,1000#,1200#,1500#,2000#,2500#,3000#,4000#,6000#,8000#,10000#.





1photoelectric industry,semiconductor,monocrystalline silicon,multi-product silicon wafers,high-hardness silicon cutting,quartz cutting, wire cutting, photovoltaic wire cutting and other grinding.

2optical glass,quartz glass,stone polishing wheel,marble,gems,polishing disc

3 cutting tool grinding and polishing,high hardness steel cutting tool grinding,single and double surface grinding machine

4functional ceramics,functional ceramic stone,honeycomb ceramic building ceramics

5bearing mechining and bearing ultrafine machining grinding

6diamond tools,water grinding pieces,dry grinding pieces production accessories

7processing ceramic heat sink,ceramic filter,ceramic film,foam ceramic

8cemented carbide sandblasting,metal polishing,tombstone carving,etc

9oil stone,grinding stone,knife grinder,brush roller and other raw materials for production

10Teflon paint,floor paint,anticorrosive paint,environmental protection paint,polytetrafluoroethylene paint,etc.

11production of nano aerogel new materials,incubators,etc

12pipe coating and aero engine coating

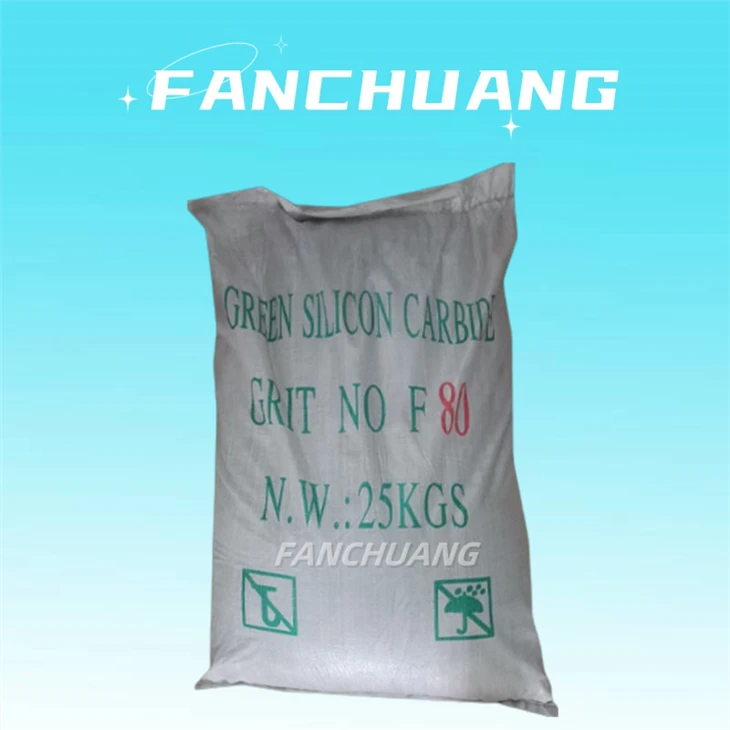

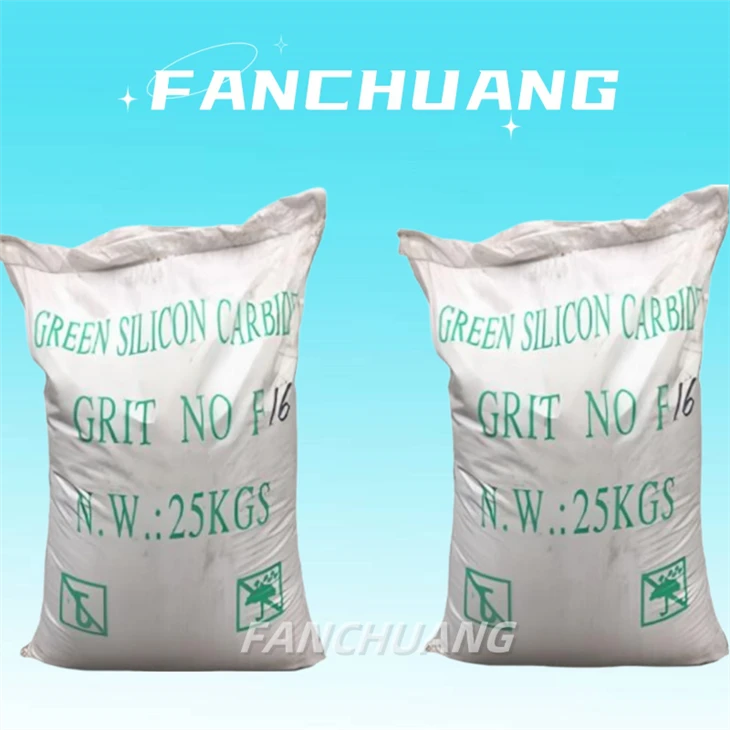

25kg Woven Bag with Inner Liner – Heavy-duty woven polypropylene bags with an inner polyethylene membrane for moisture resistance. Ideal for safe storage and transport of green silicon carbide (16-36 mesh).

25kg Woven Bag + Ton Bag Combo – Combines the convenience of 25kg inner-lined bags with bulk handling efficiency. Stackable and forklift-friendly for large-scale shipments.

25kg Woven Bag with Palletized Loading – Secured on wooden or plastic trays for enhanced stability during transit. Optimal for automated handling and warehouse storage.

Q:Who are you?
A: We are Zhengzhou Fanchuang Science and Technology Co., Ltd., a professional manufacturer and supplier of high-quality abrasive products. Based in Zhengzhou, Henan, China, we specialize in the research, development, and production of abrasives that meet global industry standards. Our strategic location ensures efficient logistics, allowing us to serve customers worldwide with reliability and speed.

Q: Can you accept customization?
A: Absolutely! We understand that different projects require tailored solutions. Whether it's product specifications, packaging, or labeling, we work closely with clients to deliver customized abrasives that fit their exact needs. Just share your requirements, and we'll handle the rest.

Q: Are samples available for quality test?
A: Yes, we provide free samples so you can evaluate our product quality firsthand. However, shipping costs are typically covered by the customer. Once requested, samples are prepared and dispatched within 1-3 working days.

Q: How can you guarantee quality?
A: Quality is our top priority. We implement strict inspection procedures at every stage-from raw material selection to final production. Our abrasives undergo rigorous testing to ensure durability, precision, and compliance with international standards.

Q: What are your terms of payment?
A: We offer flexible payment options, including T/T (Bank Transfer), L/C (Letter of Credit), PayPal, and Western Union. Other methods can also be discussed to accommodate your preferences.

Q: Where is your nearest loading port?
A: Our primary shipping port is Qingdao, known for its efficiency and global connectivity. However, we can also arrange shipments from other ports based on your location or logistical needs.

If you have any other specific needs or questions about our product, please feel free to contact us.
