Green Silicon Carbide (Carborundum )

Green Silicon Carbide (SiC) – The High-Performance Abrasive for Precision Applications

Green silicon carbide is an advanced synthetic abrasive material produced through an electric resistance furnace process at extreme temperatures exceeding 2200°C. While its manufacturing method shares similarities with black silicon carbide, green SiC demands higher-purity raw materials-primarily petroleum coke and high-grade quartz sand, with salt added as a reaction accelerator. The result is a distinct green-hued, hexagonal crystalline structure with exceptional hardness, ranking just below diamond and surpassing corundum in cutting performance.

Key Characteristics & Advantages

Superior Hardness & Sharpness – Ideal for precision grinding, lapping, and polishing of hard, brittle materials.

High Thermal & Electrical Conductivity – Enhances heat dissipation in high-speed applications and exhibits semiconductor properties.

Controlled Brittleness – More friable than black SiC, ensuring continuous self-sharpening during grinding for consistent surface finishes.

Exceptional Purity (≥99% SiC) – Minimizes contamination, making it suitable for semiconductor and optical applications.

Manufacturing & Processing

Green silicon carbide blocks are crushed, milled, and precisely classified through advanced processes such as vertical ball milling, acid washing, hydraulic grading, and ultrasonic sieving. This ensures:

Uniform Particle Distribution – Tightly controlled grain sizes eliminate coarse or overly fine particles.

High Surface Cleanliness – Acid washing removes impurities, enhancing abrasive performance.

Optimized Geometry – Engineered for maximum cutting efficiency and minimal workpiece scratching.

Product Classification & Applications

Green SiC is categorized based on production methods and end-use requirements:

P-Grade (Coated Abrasives)

Produced via crusher processing for sharp, aggressive cutting.

Used in abrasive belts, sandpaper, and emery cloth for metal, wood, and composite finishing.

F-Grade (Bonded Abrasives)

Processed via ball milling for dense, high-strength grains.

Ideal for ceramic/resin grinding wheels, honing stones, and cutting tools.

W-Grade (Micro Powders)

Ultra-fine powders (sub-micron to single-digit microns) produced through jet milling and air classification.

Applied in precision polishing slurries, specialty coatings, and advanced ceramics.

Industry Applications

Semiconductor & Optics – Lapping silicon wafers, sapphire, quartz, and LED substrates.

Advanced Ceramics – Additive for high-strength refractory materials.

Aerospace & Automotive – Finishing turbine blades, bearings, and high-tolerance components.

Surface Treatment – Delivering mirror finishes on metals, glass, and composites.



Brand	Fanchuang
Product description	green silicon carbide
Product grade	first grade
Product apperance	powder or granular
Typical physical index
basic mineral	a-SiC
crystal system	hexagonal crystal
Knoop hardness	2670-2815kg/mm2
Moh's hardness	≥9.4
Specific gravity	3.2kg/cm2
Melting point	2250℃
Typical chemical index
SiC	≥99.05%
SiO2	0.2
F.Si	0.03
F.Fe	0.04
C	0.1

Section sand:0-1mm,1-3mm,3-5mm,5-8mm

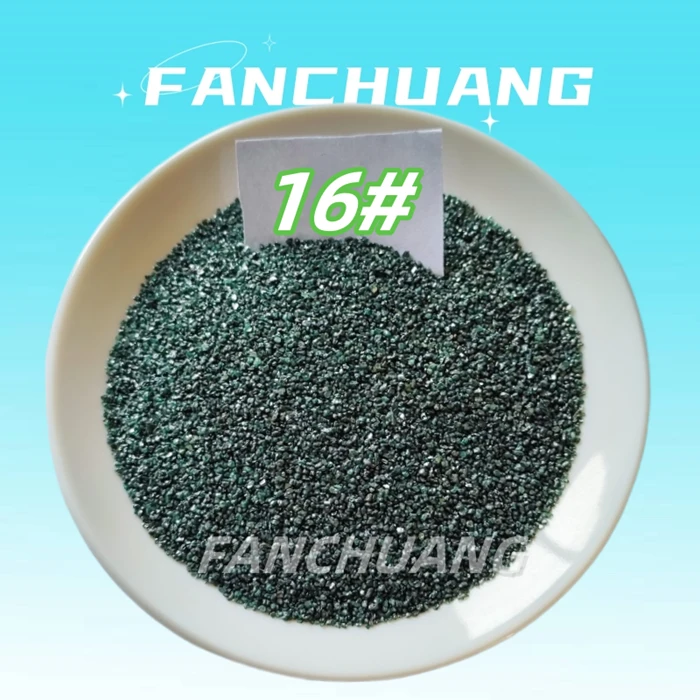

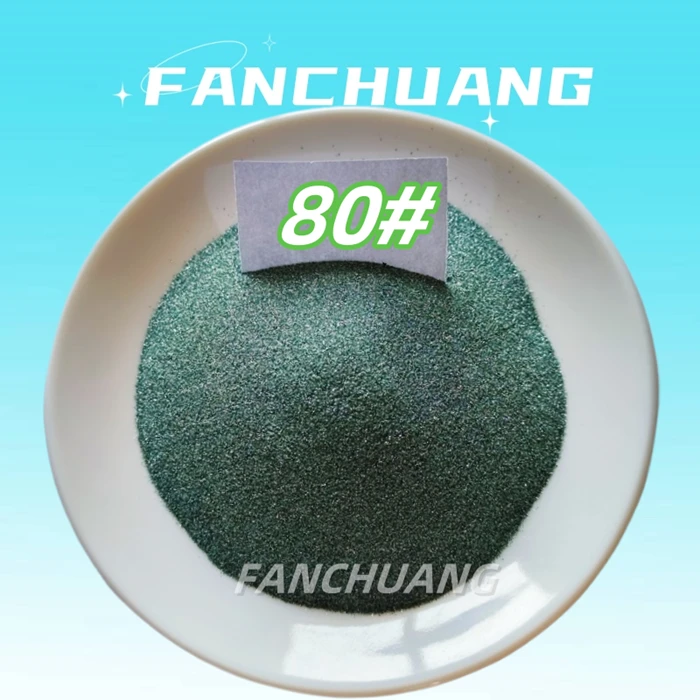

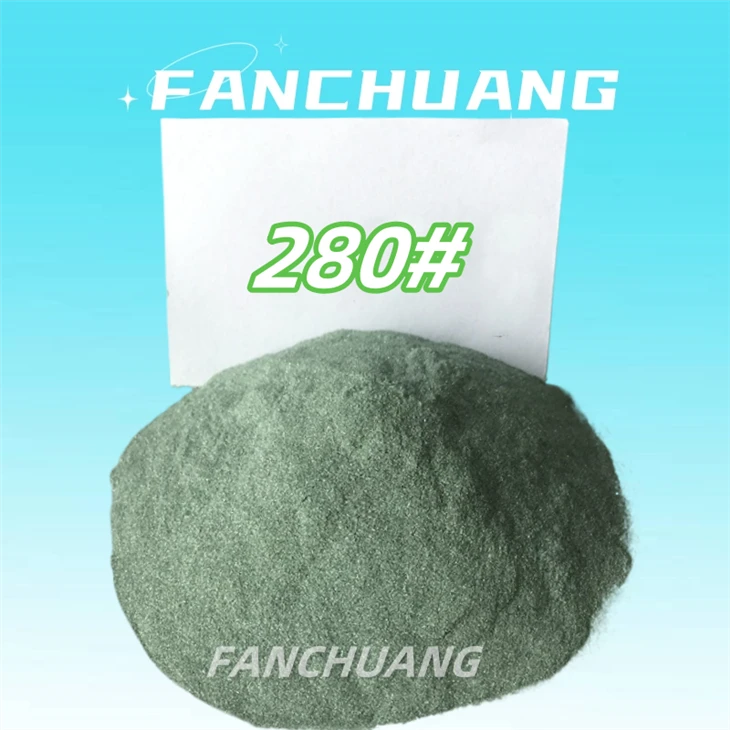

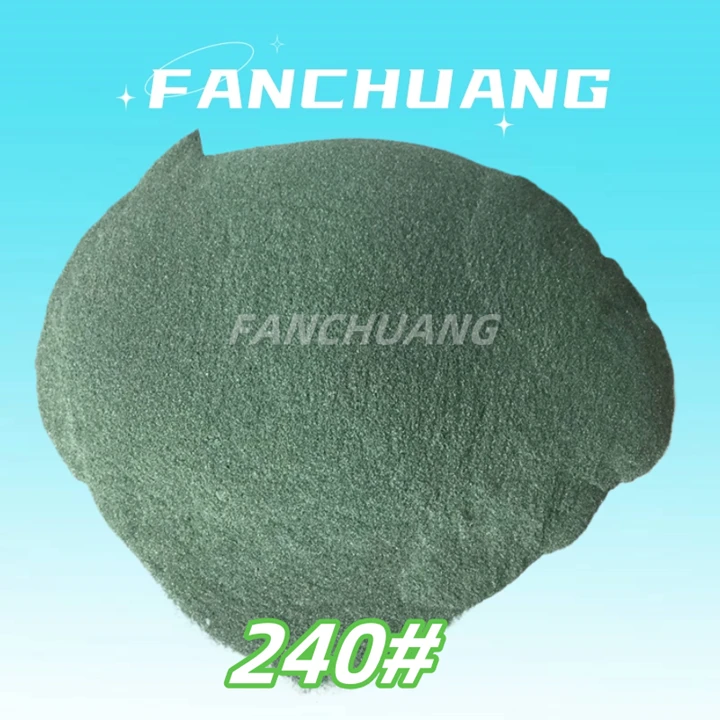

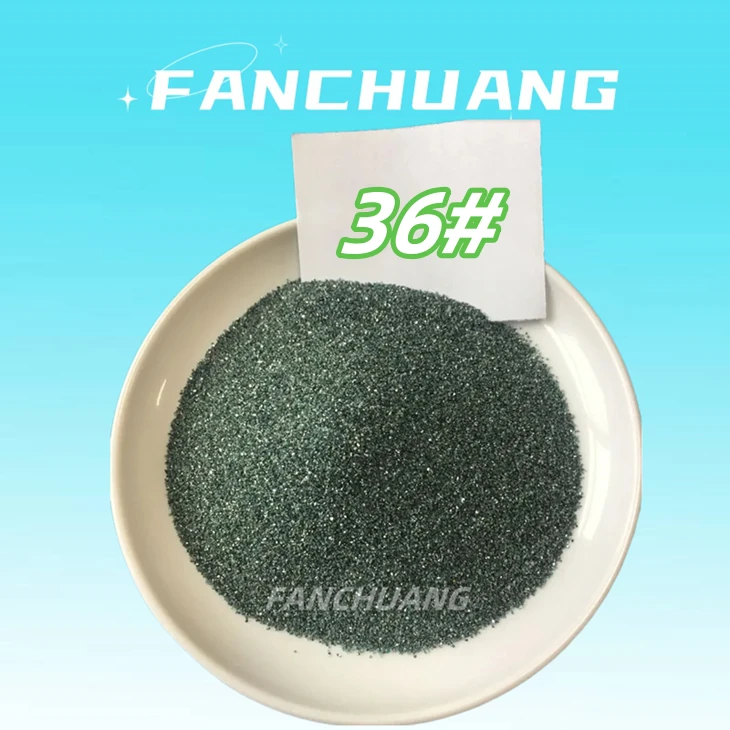

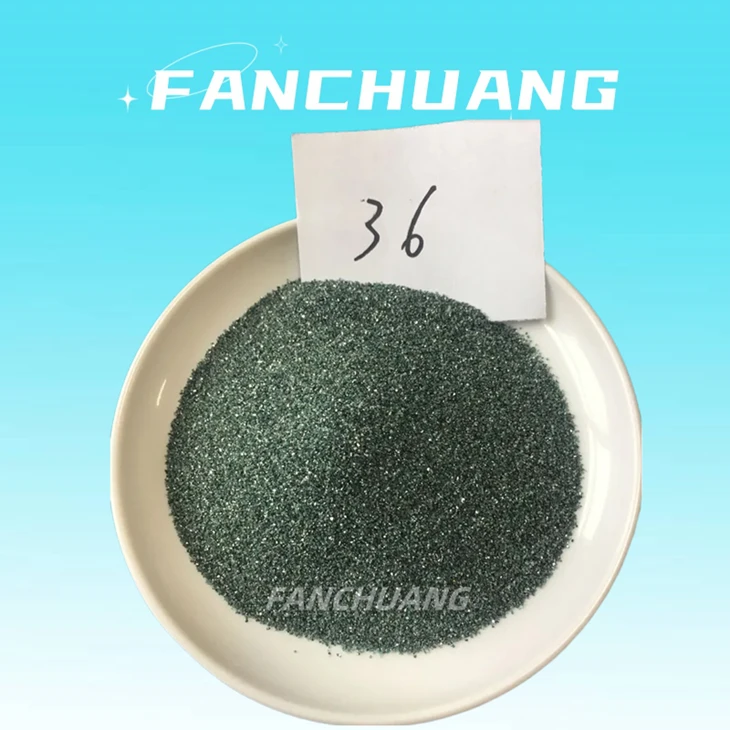

Grain-size sand:16#,20#,24#,30#,36#,46#,60#,80#,100#,120#,150#,180#,200#,220#,325#.

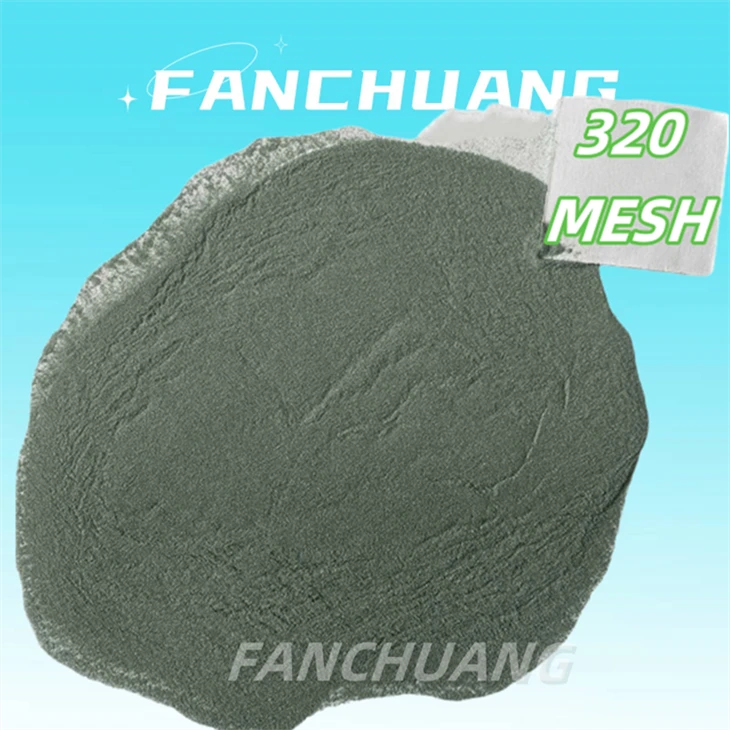

Micro powder:400#,600#,800#,1000#,1200#,1500#,2000#,2500#,3000#,4000#,6000#,8000#,10000#.





Precision Cutting & Grinding – Ideal for monocrystalline/multi-crystalline silicon wafers, quartz, and high-hardness materials in photovoltaics and semiconductors.

Optical & Stone Polishing – Used for polishing optical glass, quartz, marble, and gems with high-grit efficiency.

Tool Sharpening – Perfect for grinding high-hardness steel tools and precision surface machining.

Ceramics Processing – Enhances grinding for functional ceramics, building ceramics, and honeycomb structures.

Bearing Finishing – Enables ultra-fine machining for high-precision bearings.

Diamond Tool Production – Key material for manufacturing water/dry grinding wheels and cutting accessories.

Advanced Ceramics – Used in ceramic heat sinks, filters, and foam ceramics for superior surface finishing.

Metal & Stonework – Effective in sandblasting carbide, tombstone engraving, and metal polishing.

Abrasive Tools – Essential for oil stones, grinding stones, and brush rollers in industrial applications.

Special Coatings – Supports anti-corrosive, PTFE, and nano-coatings for pipes and aerospace engines.

High-Tech Materials – Used in aerogel production and thermal insulation solutions.

Surface Treatments – Provides durable coatings for industrial and high-temperature applications.

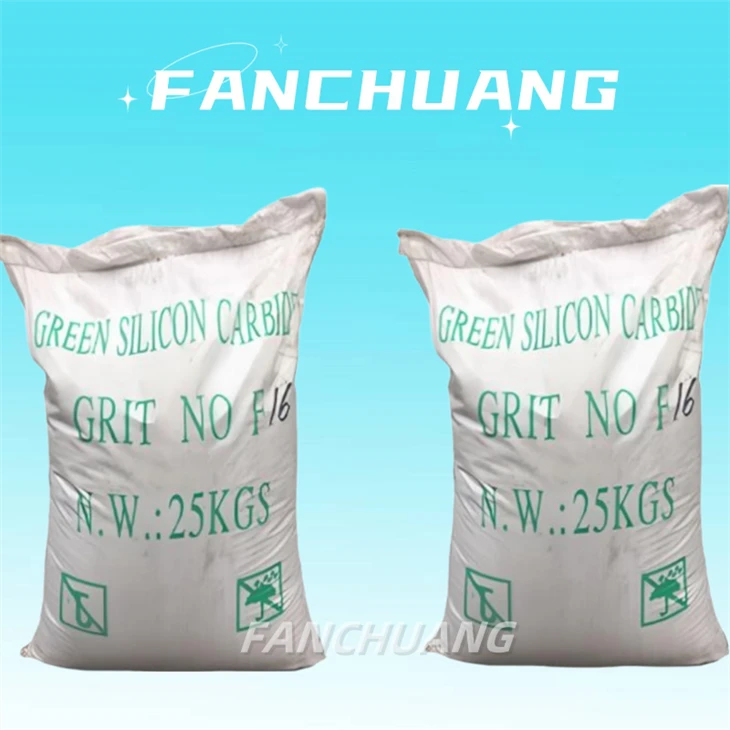

25kg Woven Bag with Inner Liner – Moisture-proof, durable, and ideal for safe handling.

25kg Woven Bag + Ton Bag – Combines inner protection with bulk container convenience for large shipments.

25kg Woven Bag with Pallet – Stackable, secure, and optimized for easy transport.

Custom Packaging – Tailored solutions available upon request.
