Pink Fused Aluminum Oxide Mesh220
High Wear Resistance and High Toughness Abrasive Chrome Corundum for Manufacturing Abrasive Tools
First Grade High Quality Pink Fused Alumina
The incorporation of the Cr 2 O 3 into the Al2O3 crystal lattice produces a slight increase in toughness and a reduced friability compared with White Fused Alumina.
- Product Introduction
Products Description
Chromium corundum is made of alumina powder and moderate chromium oxide ,which is melted at high temperature.Depending on the chromium content,chromium fused alumina is pink or purplish red.Its hardness is similar to white alumina,and toughness is higher than white alumina.Abrasives made of chromium fused alumina have good durability and high smoothness of grinding.Compared with white corundum,chromium fused alumina is more unbreakable,so it forms a smooth surface.
It is suitable for precision grinding such as measuring instruments,machine tool shafts,instrument parts,screwwork parts and sample grinding.It can also be used as grinding and polishing materials,precision casting sand,spraying materials,chemical catalyst carriers,special ceramics,high-grade refractories,etc.
Carefully selected material
Using advanced screening and grading technology,our experienced workers select high-quality raw material carefully,thus ensure each batch of product is in good quality.
Strict production process
1Raw material→2pyrolytic smelting→3cooling out of furnace→4mass crashing→5ball grinding→6Barmack crushing and sieving→7finished product of granular sand →8sifting residue powder→9chemical treatment→10water countercurrent classification→11sediment pool→12drying fine powder→13inspection of finished product→14finished product storage→15reinspection→16shipment
Excellent quality
Good crystallinity,pure color,high packing density and toughness;
Uniform particle size,low magnetic content,fast processing speed,and high quality;
High purity,high hardness,good cleanliness,good self-sharpness and corrosion resistance.
A complete range of specifications
secion sand 0-1mm/1-3mm/3-5mm/5-8mm
granular sand:16#/24#/30#/36#/46#/60#/80#
fine powder100#/200#/325#/400#
Other sizes are also available on request.
Wide range in application
Chromium fused alumina abrasives are typically used in the manufacture of ceramic abrasives. The grinding wheels made of chromium fused alumina are sharp, low heating rate, high grinding ratio and less adhesion. The sintered abrasive tools made of it has the characteristics of bright color , does not have net-shaped cracks, and is free of rust spots.
Chromium fused alumina is also ideal for sandblasting, suitable for hardware, glass, zinc alloy, aluminum alloy, stainless steel, high carbon steel, high speed steel and so on. In particular, the effect of sand spraying on the thin-walled workpieces is obvious, the workpiece does not change color, and has high surface finish quality.
In the field of grinding and polishing,chrome corundum can improve the finish of products ,such as silicon wafers, optical lenses, precision instrumentation, polishing glass shell, glassware, ceramic stone, leather, plastic, metal parts and so on.
Products Parameter
Physical properties
| basic mineral | α-Al2O3 |
| color | pink/purplish red |
| crystal size | 600-2000μm |
| specific gravity | ≥3.9g/cm3 |
| packing density | 1.40-1.91g/cm3 |
| micro hardness | 2200-2300g/mm2 |
Chemical content
| Grits | low chromium content | medium chromium content | high chromium content | ||||||
| Al2O3 | Cr2O3 | Na2O | Al2O3 | Cr2O3 | Na2O | Al2O3 | Cr2O3 | Na2O | |
| F12-F80 | ≥98.50 | 0.20-0.45 | ≤0.50 | ≥98.20 | 0.45-1.00 | ≤0.55 | ≥97.40 | 1.00-2.00 | ≤0.55 |
| F90-F150 | ≥98.50 | 0.20-0.45 | ≤0.55 | ≥98.20 | 0.45-1.00 | ≤0.60 | ≥97.00 | 1.00-2.00 | ≤0.60 |
| F180-F220 | ≥98.00 | 0.20-0.45 | ≤0.60 | ≥97.80 | 0.45-1.00 | ≤0.70 | ≥96.50 | 1.00-2.00 | ≤0.70 |
Detailed picture
Application range
Factory picture

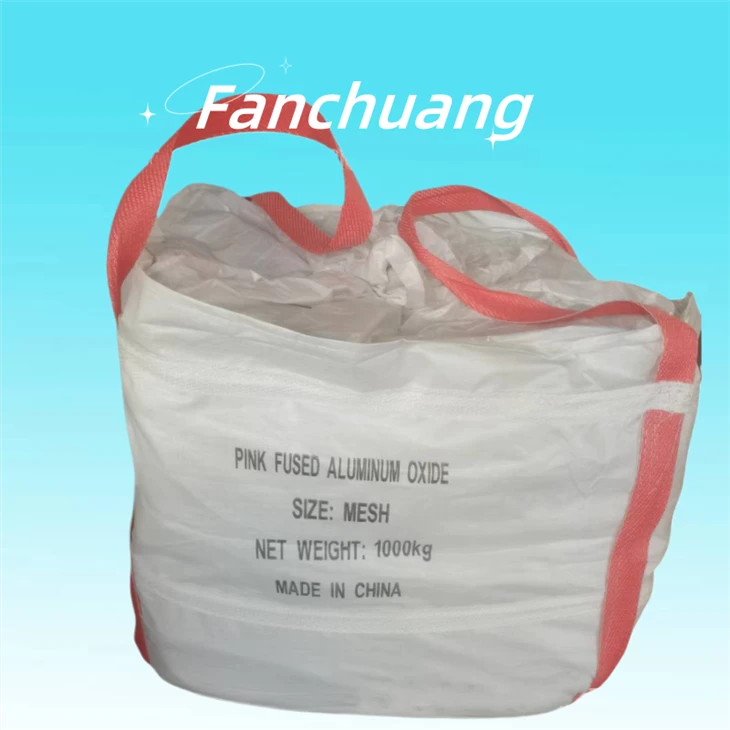

Packing & transportation
FAQ
Q:Who are you?
A: ZHENGZHOU FANCHUANG SCIENCE AND TECHNOLOGY CO.,LTD is a manufacturer and trader specialized in the research, development and production of abrasive products. We are located in Zhengzhou city,Henan province,China,with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Q: Can you accept customization?
A: Yes. If you have special requirements on products or packages, we can do customization
for you.
Q: Are samples available for quality test?
A: Yes,free samples can be prepared for quality test,but usually customers bear the freight charges.
Q:How long can I get a sample or some samples?
A:Normally 1-3 working days.
Q: How can you guarantee quality?
A: We have a strict inpection process to ensure product quality.
Q: What are your terms of payment?
A: T/T,L/C,paypal,western union and other payment methods can be negotiated.
Q: Where is your nearest loading port?
A: Qingdao port.Other ports can also be designated according to your requirement.
Contact us
If you have any other specific needs or questions about abrasive product, please feel free to contact us.
 |
