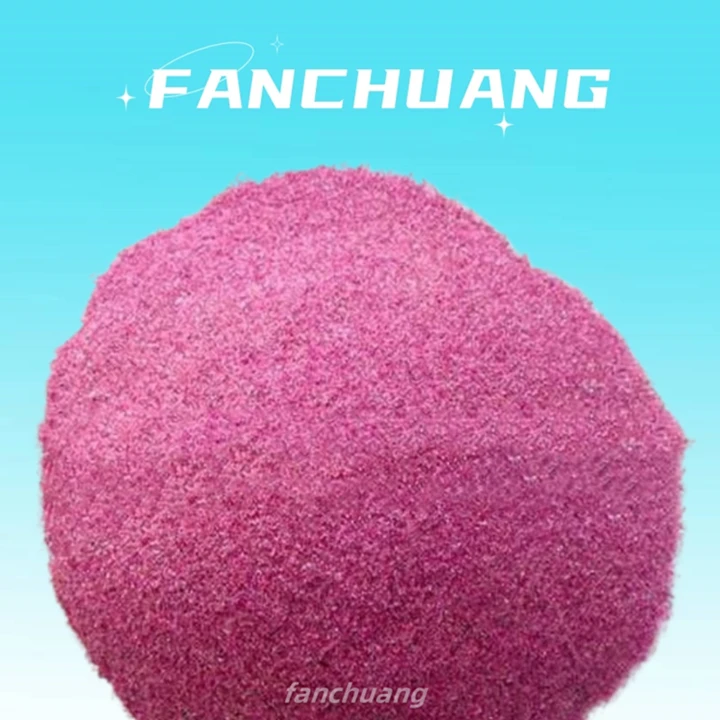

Ruby Fused Alumina

Ruby Fused Alumina is made of alumina powder and moderate chromium oxide ,which is melted at high temperature.Depending on the chromium content,chromium fused alumina is pink or purplish red.Its hardness is similar to white alumina,and toughness is higher than white alumina.Abrasives made of chromium fused alumina have good durability and high smoothness of grinding.Compared with white corundum,chromium fused alumina is more unbreakable,so it forms a smooth surface.

It is suitable for precision grinding such as measuring instruments,machine tool shafts,instrument parts,screwwork parts and sample grinding.It can also be used as grinding and polishing materials,precision casting sand,spraying materials,chemical catalyst carriers,special ceramics,high-grade refractories,etc.

Carefully selected material

Using advanced screening and grading technology,our experienced workers select high-quality raw material carefully,thus ensure each batch of product is in good quality.

Strict production process

1Raw material→2pyrolytic smelting→3cooling out of furnace→4mass crashing→5ball grinding→6Barmack crushing and sieving→7finished product of granular sand →8sifting residue powder→9chemical treatment→10water countercurrent classification→11sediment pool→12drying fine powder→13inspection of finished product→14finished product storage→15reinspection→16shipment

Excellent quality

Good crystallinity,pure color,high packing density and toughness;

Uniform particle size,low magnetic content,fast processing speed,and high quality;

High purity,high hardness,good cleanliness,good self-sharpness and corrosion resistance.

A complete range of specifications

secion sand 0-1mm/1-3mm/3-5mm/5-8mm

granular sand:16#/24#/30#/36#/46#/60#/80#

fine powder100#/200#/325#/400#

Other sizes are also available on request.

Wide range in application

Chromium fused alumina abrasives are typically used in the manufacture of ceramic abrasives. The grinding wheels made of chromium fused alumina are sharp, low heating rate, high grinding ratio and less adhesion. The sintered abrasive tools made of it has the characteristics of bright color , does not have net-shaped cracks, and is free of rust spots.

Chromium fused alumina is also ideal for sandblasting, suitable for hardware, glass, zinc alloy, aluminum alloy, stainless steel, high carbon steel, high speed steel and so on. In particular, the effect of sand spraying on the thin-walled workpieces is obvious, the workpiece does not change color, and has high surface finish quality.

In the field of grinding and polishing,chrome corundum can improve the finish of products ,such as silicon wafers, optical lenses, precision instrumentation, polishing glass shell, glassware, ceramic stone, leather, plastic, metal parts and so on.

Physical properties

basic mineral	α-Al2O3
color	pink/purplish red
crystal size	600-2000μm
specific gravity	≥3.9g/cm3
packing density	1.40-1.91g/cm3
micro hardness	2200-2300g/mm2

Chemical content

Grits	low chromium content			medium chromium content			high chromium content
	Al2O3	Cr2O3	Na2O	Al2O3	Cr2O3	Na2O	Al2O3	Cr2O3	Na2O
F12-F80	≥98.50	0.20-0.45	≤0.50	≥98.20	0.45-1.00	≤0.55	≥97.40	1.00-2.00	≤0.55
F90-F150	≥98.50	0.20-0.45	≤0.55	≥98.20	0.45-1.00	≤0.60	≥97.00	1.00-2.00	≤0.60
F180-F220	≥98.00	0.20-0.45	≤0.60	≥97.80	0.45-1.00	≤0.70	≥96.50	1.00-2.00	≤0.70





Q:Who are we?
A: Zhengzhou Fanchuang Science and Technology Co., Ltd. is located in Zhengzhou City, Henan Province-the center of China's abrasive and grinding industrial. We are manufacturer of abrasive and grinding wheels. More than ten years development, we have gradually established various production to cover abrasive and grinding industrial. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

Q: Can you accept customization?
A: Yes. We can offer a wide range of customization options.Please tell us your specific requirement,such as design,color,size and any special features you want.

Q: Are samples available for quality test?
A: Yes,free samples can be prepared for quality test,but usually customers bear the freight charges.Of course,the sample fee will be refunded after we get your future bulk order.

Q:How long can I get a sample or some samples?

A:Normally 1-3 working days.Please kindly share your courier account to us,we will arrange to ship out the samples as soon as possible;If your courier account is not available,we will also be happy to help you check the shipping cost with our shipping forwarder and arrange the shipment.

Q: How can you guarantee quality?
A: We have a strict inpection process to ensure product quality.We have excellent talents of management,professional technical team,strict quality testing procedures.We are scrupulous about every detail,thus our professional QC team will carry out strict quality inspection on every production process.

Q: What are your terms of payment?
A: T/T,L/C,paypal,western union and other payment methods can be negotiated.

Q: Which is your nearest loading port?
A: Qingdao port.Other ports can also be designated according to your requirement.
