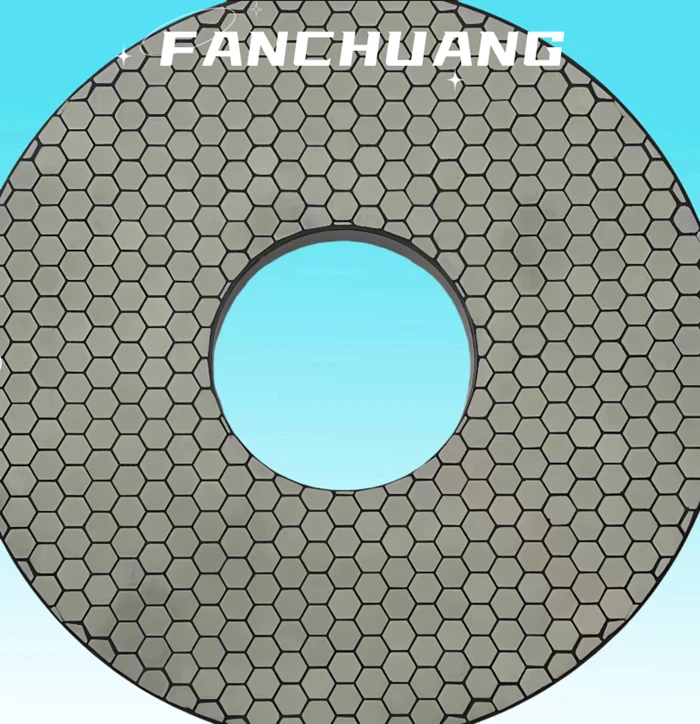

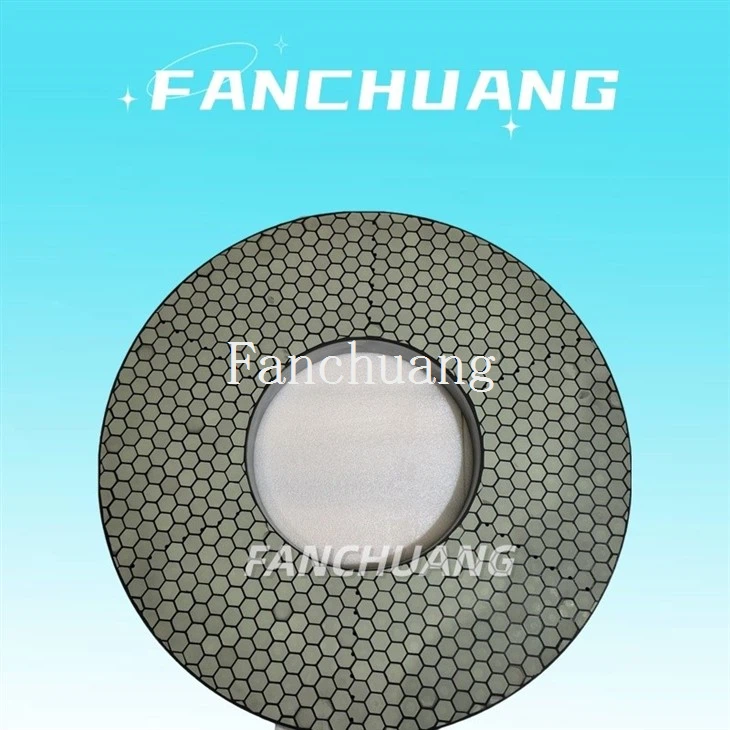

Ceramic Diamond Grinding Disc

A ceramic diamond grinding disc refers to a disc-shaped abrasive tool used on grinding machines. It consists of a disc body and diamond grinding segments, where the diamonds are welded or embedded onto the disc. Through the high-speed rotation of the grinding machine, it performs flattening and polishing on the work surface.

Premium Material Selection
High-purity diamond grits are rigorously selected to ensure solid composition without inferior fillers. Sufficient ceramic binder is proportioned to prevent cost-cutting, guaranteeing core performance and durability.

Wear-Resistant & High-Efficiency
The wear resistance of ceramic diamond grinding discs far exceeds that of conventional grinding wheels, ensuring minimal wear loss.
They deliver rapid cutting speeds, maintain sharpness throughout prolonged use, and are ideally suited for high-volume processing of hardened materials.

Excellent Thermal Conductivity and Heat Dissipation
The diamond-enhanced high thermal conductivity, combined with a porous ceramic structure, rapidly disperses grinding heat and promotes coolant penetration. This significantly reduces the risk of workpiece burn and cracking.

Stable and Reliable Performance
Whether processing high-hardness materials or conducting batch precision grinding, it ensures precise tolerance control and consistent quality. This reduces the frequency of wheel replacement, lowers production costs, and guarantees superior surface finish, making it suitable for a wide range of demanding grinding applications.

Long Service Life
Based on the specific workpiece processing needs of our clients, we professionally customize material composition and grinding solutions. This ensures precise matching of grinding wheel hardness, significantly extending service life and reducing the frequency of dressing.

Outer Diameter: Ø150-Ø1500 MM
Grain Size: 80-1500#
Hardness: 100 HRB
Surface Roughness: 0.1 UM - 1.2 UM
Bore Diameter: 30-500 MM
Parallelism: <0.002 MM
Height Consistency: ≤0.002 MM
Flatness: 0.001 MM - 0.004 MM



Dual-End Face Grinding for Multiple Industries
Suitable for double-end face grinding of a wide range of products, including:

Automotive components

Air conditioning compressor parts

Hard alloy cutting tools

PCD & PCBN tools

Zirconia and ceramic products

Precision bearings

Hydraulic and pneumatic components

Measuring and cutting tools

Crystal, gemstone, and stone materials

Silicon wafers
