Twisted Wire Bowl Type Wire Wheel
Knotted Twisted Bowl Brush
Knotted Coarse Crimped Wire Cup Brush
Angle Grinder Wire Wheel Cup Brush Set
4 Inch Twisted Knotted Cup Brush for Grinders
- Product Introduction
Products Description
Wire cup brushes are functional tools that remove material quickly ,ideal for heavy-duty tasks like large-scale rust removal, paint removal, scratch removal, grinding welds, staining stains, scratching, polishing, etc. It is especially suitable for the grinding treatment of electric welding scars such as stainless steel.
High-quality carbon steel wire
The steel wire has undergone high temperature heat treatment, which has the characteristics of high hardness, wear resistance, long life, easy use and improved operation efficiency.The wires are twisted into a tight spiral to maximize abrasive action.
5mm thickened wire
The high tensile steel wire is stainless steel grade 304,and its diameter is 0.5mm.All the wires are twisted together in a knot pattern.This particular structure can avoid the occurrence of steel wire flying and breaking during operation,and guarantee strong and long-lasting brushing action.
knotted red cup design
Fanchuang wire cup brushes are round brushes with wires extending outward from the center,forming a cup-like shape.Double layer pressing technology is adopted for bowl shape,which is more firm and uniform.The steel wire is fixed to a red bowl.This design allows for a broad surface area contact,making it ideal for cleaning large and flat surfaces.
Good heat dissipation
The steel wire is elastic and there are relatively large gaps between the wires , so that the surface of the workpiece will not be black because of overheating during grinding.
Easy to use
All you need to do is to simply attach the wire cup brush to a right angle grinder and wear necessary protection.
Complete in specifications
They are available in various diameters for your choices.The outer diameter can be 65mm(2.5inch),75mm(3inch),100mm(4inch),125mm(5inch) and 150mm(6inch).

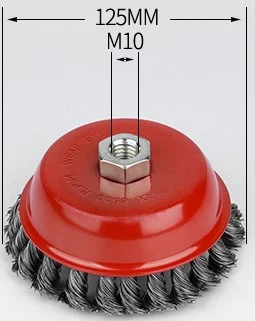

Products parameter
| picture | dimension | diameter | screw hole | wire diameter |
|
|
65mm M10*1.5 | 65mm | M10 | 0.5mm |
|
|
65mm M14*2 | 65mm | M14 | 0.5mm |
|
|
75mm M10*1.5 | 75mm | M10 | 0.5mm |
|
|
75mm M14*2 | 75mm | M14 | 0.5mm |
|
|
100mm M14*2 | 100mm | M14 | 0.5mm |
|
|
125mm M10*1.5 | 125mm | M10 | 0.5mm |
|
|
150mm M14*2 | 150mm | M14 | 0.5mm |
M10 is suitable for type100 angle grinder;and M14 is suitable for type125 angle grinder.

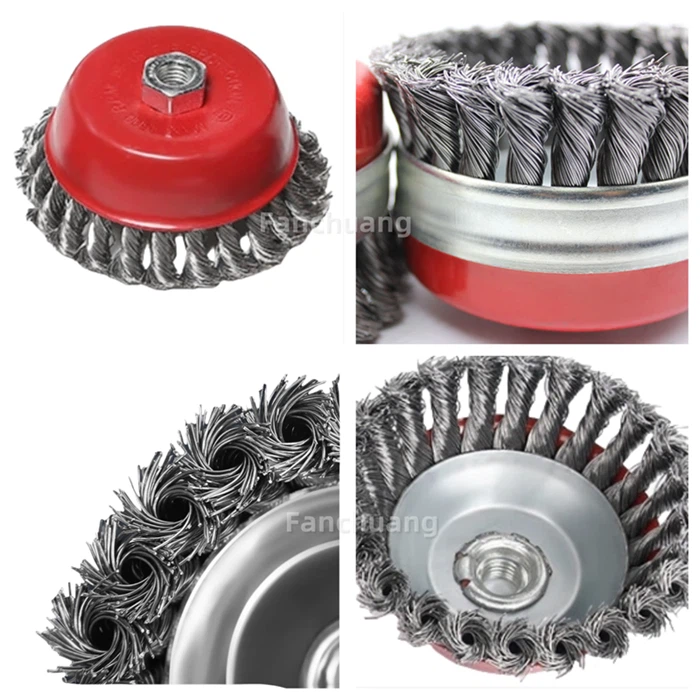

Detailed picture
Installation picture
Step1 Install the twisted wire wheel
Step2 Install the pressure plate
Step3 Wrench it tight
Step4 Complete the installation
Application scope
Paint removal rust cleaning metal grinding wood grinding
Workshop picture
Packing &transportation
FAQ
Q:Who are you?
A: ZHENGZHOU FANCHUANG SCIENCE AND TECHNOLOGY CO.,LTD is a manufacturer and trader specialized in the research, development and production of abrasive products. We are located in Zhengzhou city,Henan province,China,with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Q: Can you accept customization?
A: Yes. If you have special requirements on products or packages, we can do customization
for you.
Q: Are samples available for quality test?
A: Yes,free samples can be prepared for quality test,but usually customers bear the freight charges.
Q:How long can I get a sample or some samples?
A:Normally 1-3 working days.
Q: How can you guarantee quality?
A: We have a strict inpection process to ensure product quality.
Q: What are your terms of payment?
A: T/T,L/C,paypal,western union and other payment methods can be negotiated.
Q: Where is your nearest loading port?
A: Qingdao port.Other ports can also be designated according to your requirement.
contact us
If you have any other specific needs or questions about our product, please feel free to contact us.
 |
