107automatic Grinding Wheel Forming Machine
cutting and grinding wheel forming machine
cutting & grinding wheel press machine
a total of 112 stations
2200-2400wheels per hour
- Product Introduction
Products Description
Fanchuang automatic cutting disc making machine is used for cutting disc molding.The whole set includes putting raw materials, leveling material,putting net,baking net,pressing net,putting label and metal rings,and picking up the discs.All processes are fully automatic.To meet different requirements from dear customers,we have several modes of cutting disc making machine.The whole machine has a total of 112 stations,suitable for Type 107 resin grinding wheels.The output is 2200-2400pcs per hour if the raw material meets the production standard.
The machine is ideal for the molding of fiber reinforced resin grinding wheel.
Station layout is reasonable because there are multiple material spreading mechanism and top pressure mechanism.
Cylinder propulsion die is used to achieve station conversion. It has the characteristics of low cost,easy maintenance,low failure rate,high safety.
The matched electrical accessories are from well-known enterprises,and the mold replacement is simple and fast.
| Brand | Fanchuang |
| Product name | four-press head automatic propulsion machine for cutting disc |
| quantity of stations | 112 |
| diameter of cutting disc | 107mm |
| capacity | 2200-2400pcs/hour |
Main component brand
| Hydraulic machine | Foshan |
| Cylinder and air valve | Air TAC |
| PLC | XINJIE |
| Contactor | Schneider |
| Relay | Omron |
| Amplifier | YUHAO |
| Turntable | Delta |
| Stepping motor | MIGE |

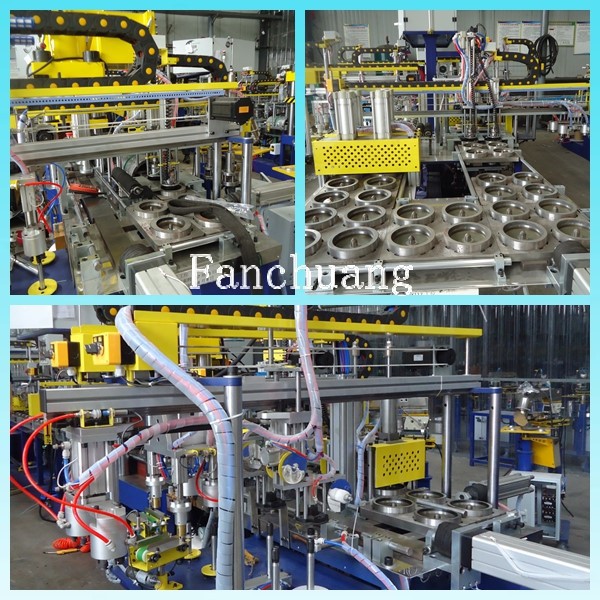

Detailed picuture&video
The following website is about the video of our automatic grinding wheel forming machine at youtube.
Workshop picture
Packing &transportation
FAQ
Q:Who are you?
A: ZHENGZHOU FANCHUANG SCIENCE AND TECHNOLOGY CO.,LTD is a manufacturer and trader specialized in the research, development and production of abrasive products. We are located in Zhengzhou city,Henan province,China,with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Q: Can you accept customization?
A: Yes. If you have special requirements on products or packages, we can do customization
for you.
Q: Are samples available for quality test?
A: Yes,free samples can be prepared for quality test,but usually customers bear the freight charges.
Q:How long can I get a sample or some samples?
A:Normally 1-3 working days.
Q: How can you guarantee quality?
A: We have a strict inpection process to ensure product quality.
Q: What are your terms of payment?
A: T/T,L/C,paypal,western union and other payment methods can be negotiated.
Q: Where is your nearest loading port?
A: Qingdao port.Other ports can also be designated according to your requirement.
