Auto Abrasive Cutting Wheel Forming Machine

Equipped with intelligent control systems
integrates cutting and grinding wheel production into a single streamlined operation.
for producing high-strength abrasive wheels with smooth finishes.
a push-type cutting disc machine that excels in speed and precision

Send Inquiry

Product Introduction

Products Description

Fully Automated Production
FANCHUANG's Auto Abrasive Cutting Wheel Forming Machine delivers a highly efficient, fully automated solution for manufacturing resin-bond cutting and grinding wheels. The integrated system handles every step-from abrasive material feeding, leveling, and fiberglass mesh placement to baking, pressing, label/metal ring insertion, and final disc extraction-without manual intervention.

Customizable Configurations
To accommodate diverse production needs, FANCHUANG offers multiple machine models with varying workstations, wheel diameters, and output capacities. This flexibility ensures compatibility with different customer specifications for cutting and grinding wheel dimensions and productivity demands.

Optimized for Reinforced Resin Wheels
Designed specifically for fiber-reinforced resin grinding wheel molding, the machine features a rational workstation layout with multi-point material spreading and top-pressure mechanisms. This ensures uniform density and structural integrity in every wheel produced.

Reliable and Low-Maintenance Operation
Utilizing cylinder-driven die propulsion for seamless station transitions, FANCHUANG's machine combines cost-effectiveness with robust performance. Its simplified mechanics reduce failure rates, enhance safety, and minimize maintenance requirements.

Premium Components and User-Friendly Design
Equipped with high-quality electrical components from reputable suppliers, the machine guarantees durability and consistent performance. Additionally, its quick-mold replacement system streamlines production adjustments, reducing downtime.

Innovative Engineering for Industry Efficiency
FANCHUANG's cutting-edge design prioritizes precision, speed, and adaptability, making it an ideal choice for abrasive wheel manufacturers seeking to optimize output while maintaining stringent quality standards.

Main component brand

Hydraulic machine	Foshan
Cylinder and air valve	Air TAC
PLC	XINJIE
Contactor	Schneider
Relay	Omron
Amplifier	YUHAO
Turntable	Delta
Stepping motor	MIGE
Transformer	Newtown

The following form shows the parameters of the different cutting disc making machines.

Model	machine picture	cutting disc diameter	workstation	output capacity
FC150-48		150-180mm	48	1000-1200
FC107-112		107mm	112	2200-2400

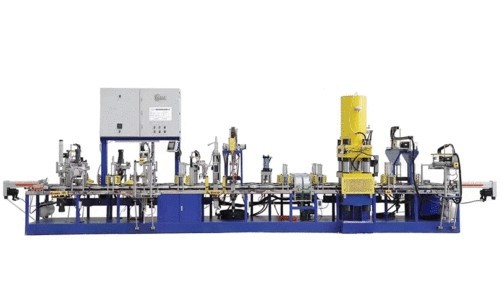

FC100-58		100-125mm	58	650-750

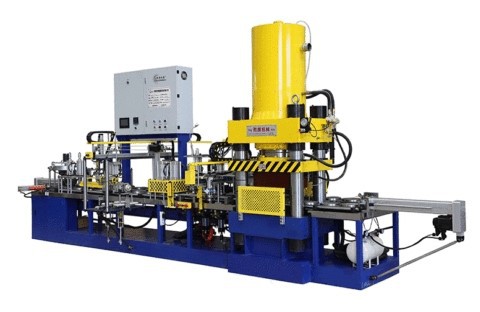

FC107-48		107-125mm	48	1000-1200
FC150-32		150-230mm	32	650-750
FC350-20		350-405mm	20	300-330pcs

Detailed picuture

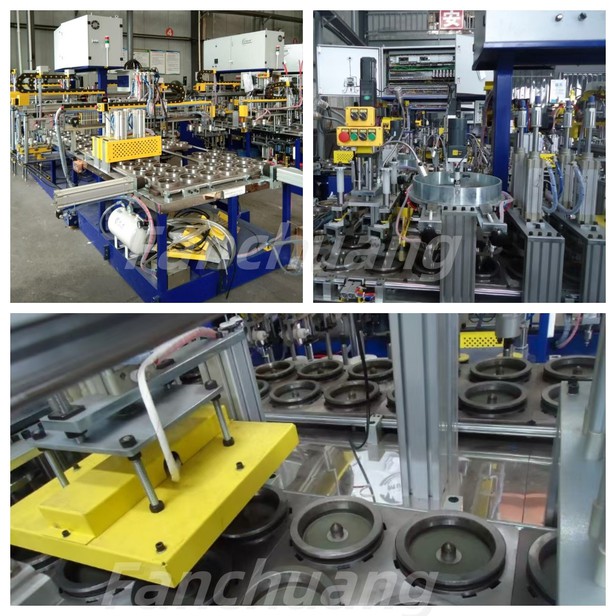

cutting wheel making machine

DETAILED PICTURE OF FANCHUNAG AUTOMATIC CUTTING WHEEL MACHINE

DETAILED PICTURE OF AUTOMATIC GRINDING WHEEL FORMING MACHINE

Workshop picture

Fanchuang workshops

Fanchuang workshop

Fanchuang workshop of grinding wheel forming machine

Packing &transportation

PACKING PICTURE OF AUTOMATIC CUTTING WHEEL MACHINE

PACKING PICTURE OF AUTOMATIC CUTTING WHEEL FORMING MACHINE

FAQ

Q:Who are you?
A: ZHENGZHOU FANCHUANG SCIENCE AND TECHNOLOGY CO.,LTD is a professional abrasives manufacturer and supplier based in Zhengzhou, China, specializing in the R&D, production, and global distribution of high-quality abrasive products. With a strong commitment to innovation and precision,we adhere to international quality standards, ensuring reliable performance across diverse industrial applications. Its strategic location offers efficient logistics connectivity for seamless worldwide shipments.

Q: Can you accept customization?
A: FANCHUANG supports tailored solutions to meet specific customer needs. Whether for unique product specifications or customized packaging, the team collaborates closely with clients to deliver personalized abrasive solutions.

Q: Are samples available for quality test?
A: FANCHUANG supports tailored solutions to meet specific customer needs. Whether for unique product specifications or customized packaging, our team collaborates closely with clients to deliver personalized abrasive solutions.

Q: How can you guarantee quality?
A: Rigorous inspection protocols are implemented at every production stage, from raw material selection to final packaging.

Q: What are your terms of payment?
A: Flexible payment methods are available, including T/T, L/C, PayPal, and Western Union. FANCHUANG accommodates negotiated terms to facilitate smooth transactions.

Q: Which is your nearest loading port?
A: The primary loading port is Qingdao, renowned for its efficiency. However, FANCHUANG can arrange shipments from other designated ports based on customer preferences or logistical requirements.
