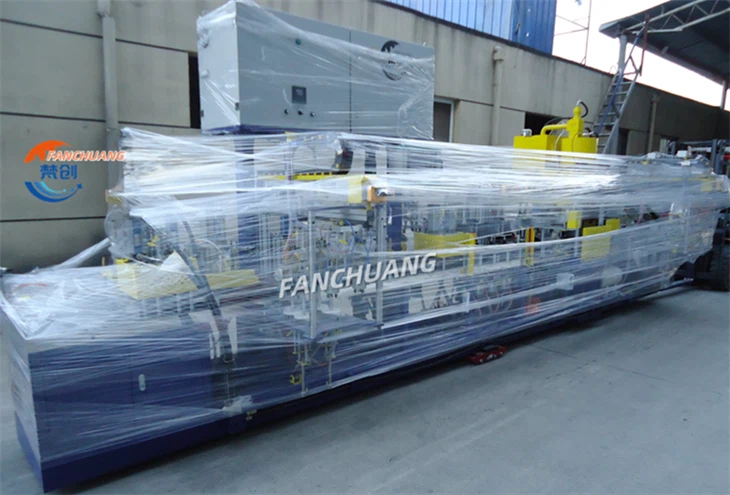

150-230mm Pusher Type Cutting Disc Making Machine
cutting disc and grinding wheels making machine
cutting & grinding wheel forming machine
grinding wheel hydraulic press machine
push-type cutting disc making machine manufacturer in China
- Product Introduction
Products Description
Fanchuang automatic cutting disc making machine provides an efficient solution to the automatic production of resin-bond cutting&grinding wheels.The whole set includes putting abrasive materials, leveling material,putting fiberglass mesh,baking fiberglass mesh,pressing fiberglass mesh,putting label and metal rings,pressing the wheels and picking up the discs.All processes are fully automatic.To meet different requirements from dear customers,we have several models of cutting disc making machine,providing different workstations,different diameters of cutting&grinding wheels,and different production capacity.
The machine is ideal for the molding of fiber reinforced resin grinding wheel.
Station layout is reasonable because there are multiple material spreading mechanism and top pressure mechanism.
Cylinder propulsion die is used to achieve station conversion. It has the characteristics of low cost,easy maintenance,low failure rate,high safety.
The matched electrical accessories are from well-known enterprises,and the mold replacement is simple and fast.
Main component brand
| Hydraulic machine | Foshan |
| Cylinder and air valve | Air TAC |
| PLC | XINJIE |
| Contactor | Schneider |
| Relay | Omron |
| Amplifier | YUHAO |
| Turntable | Delta |
| Stepping motor | MIGE |
| Transformer | Newtown |
The following form shows the parameters of the different cutting disc making machines.
| Model | machine picture | cutting disc diameter | workstation | output capacity |
| FC150-48 |
|
150-180mm | 48 | 1000-1200 |
| FC107-112 |
|
107mm | 112 | 2200-2400 |
| FC100-58 |
|
100-125mm | 58 | 650-750 |
| FC107-48 |
|
107-125mm | 48 | 1000-1200 |
| FC150-32 |
|
150-230mm | 32 | 650-750 |
| FC350-20 |
|
350-405mm | 20 | 300-330pcs |
Detailed picuture
Workshop picture
Packing &transportation
FAQ
Q:Who are you?
A: ZHENGZHOU FANCHUANG SCIENCE AND TECHNOLOGY CO.,LTD is a manufacturer and trader specialized in the research, development and production of abrasive products. We are located in Zhengzhou city,Henan province,China,with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Q: Can you accept customization?
A: Yes. If you have special requirements on products or packages, we can do customization
for you.
Q: Are samples available for quality test?
A: Yes,free samples can be prepared for quality test,but usually customers bear the freight charges.
Q:How long can I get a sample or some samples?
A:Normally 1-3 working days.
Q: How can you guarantee quality?
A: We have a strict inpection process to ensure product quality.
Q: What are your terms of payment?
A: T/T,L/C,paypal,western union and other payment methods can be negotiated.
Q: Where is your nearest loading port?
A: Qingdao port.Other ports can also be designated according to your requirement.
How to contact us
If you have any other specific needs or questions about our product, please feel free to contact us.
 |
ZHENGZHOU FANCHUANG SCIENCE AND TECHNOLOGY CO., LTD, Our address 1204-2-171 WANDA PLAZA, ZHONGYUAN ROAD
Phone Number +8613363602087
Jerrywang_export@163.com Leno_asst@163.com |
